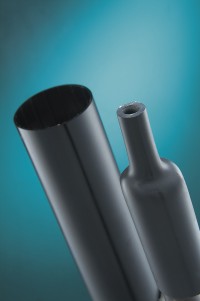

Adhesive lined tube 3:1 4:1 6:1
Dual
wall, flexible, flame retarded, heat shrinkable tubing
Outer jacket: Polyolefin, inner liner: Adhesive
Adhesive lined heat shrinkable insulating tubes specifically designed to
insulate, seal & protect parallel splices in automotive wiring harnesses and
electronic assemblies
Seals and protects against water, moisture and chemicals
Adhesive bonds readily to PVC, XLPE cable jackets
Shrinks rapidly for quick installation, shrink temperature 110C
Materials : Co-extruded of polyolefin and hot melt adhesive
Application: Insulation, Sealing, Protect bundles wires and metal tubes against
water or moisture
ATUM/DWP-125/W2B2/DERAY IAKT/FIT321
MIL-I-23053/4 Class 3 UL approved
|
Sizes
|
I.D (min)
As Supplied
|
I.D (max)
Recovery
|
Wall thickness after full recovery (min)
|
|
Total
|
Tube
|
Adhesive
|
|
Ø3.0/1.0
|
3.7
|
1.0
|
1.0
|
0.5
|
0.5
|
|
Ø4.0/1.3
|
4.7
|
1.3
|
1.2
|
0.6
|
0.6
|
|
Ø6.0/2.0
|
6.4
|
1.6
|
1.4
|
0.7
|
0.7
|
|
Ø6.0/1.5
|
6.4
|
1.4
|
1.5
|
0.7
|
0.8
|
|
Ø8.0/2.0
|
8.6
|
1.8
|
1.8
|
0.9
|
0.9
|
|
Ø 9.0/3.0
|
9.6
|
2.8
|
1.6
|
0.8
|
0.8
|
|
Ø 9.0/2.3
|
9.6
|
2.1
|
2.0
|
1.0
|
1.0
|
|
Ø12.0/4.0
|
12.4
|
3.8
|
1.8
|
0.9
|
0.9
|
|
Ø12.0/3.0
|
12.4
|
2.8
|
2.4
|
1.2
|
1.2
|
|
Ø15.0/5.0
|
15.8
|
4.8
|
2.0
|
1.0
|
1.0
|
|
Ø16.0/4.0
|
16.8
|
4.0
|
2.2
|
1.1
|
1.1
|
|
Ø18.0/6.0
|
19.0
|
5.8
|
2.2
|
1.1
|
1.1
|
|
Ø20.0/5.0
|
20.3
|
4.9
|
2.4
|
1.2
|
1.2
|
|
Ø24.0/8.0
|
24.6
|
7.8
|
2.4
|
1.2
|
1.2
|
|
Ø30.0/10.0
|
30.2
|
9.9
|
2.4
|
1.2
|
1.2
|
|
Ø32.0/8.0
|
32.0
|
8.0
|
2.5
|
1.2
|
1.3
|
|
Ø40.0/13.0
|
40.0
|
13.0
|
2.5
|
1.2
|
1.3
|
|
Property
|
Test Condition
|
Quality Index
|
Test Data
|
|
Tensile Strength
|
|
>=10.4M Pa
|
13M Pa
|
|
Elongation
|
|
>=200%
|
450%
|
|
Aging Tensile Strength
|
158°C
/168hours
|
holding 70%
|
12M Pa
|
|
Aging Elongation
|
158°C
/168hours
|
holding 70%
|
400%
|
|
Dielectric Strength
|
AC 2500V/60Sec
|
Pass
|
Pass
|
|
Volume Resistivity
|
|
>=1014ohm-cm
|
>1015ohm-cm
|
|
Copper Corrosion
|
158°C
/168hours
|
No Corrosion
|
Pass
|
|
Copper Stability
|
158°C
/168hours
|
Elongation>=100%
|
200%
|
|
Flammability
|
VW-1 (except clear)
|
Pass
|
Pass
|
|
Adhesive Intenerate Temp
|
|
|
86°C
|
|
Adhesive Remove Strength
|
|
|
>=50N/cm
|
|
Adhesive Cutting Strength
|
|
|
>=7.2M Pa
|
Semi Rigid Adhesive Lined Tube
ES2000/RBK/SA2/CBK/FIT421
Flame retardant high shrink ratio adhesive
lined semirigid polyolefin tubing 4:1 5:1 ratio. Recovery Temperature 135C
|
Sizes
|
I.D (min)
As Supplied
|
I.D (max)
Recovery
|
Wall thickness after full recovery (min)
|
|
Total
|
Tube
|
Adhesive
|
|
5.72/1.27
|
5.72
|
1.27
|
1.20
|
0.55
|
0.55
|
|
7.44/1.65
|
7.44
|
1.65
|
1.52
|
0.76
|
0.76
|
|
10.85/2.41
|
10.85
|
2.41
|
1.91
|
0.95
|
1.02
|
|
17.78/4.45
|
17.78
|
4.45
|
2.41
|
1.04
|
1.37
|
Medium wall polyolefin tubing for CATV
network
Applications
CATV is a
cross-linked, heat shrinkable polyolefin tubing used for
insulating and sealing underground and aerial connections in
CATV plant. And the hot melt adhesive ensuring an environmental
seal and protection again moisture and water penetration. |
 |
|
Characteristics
Resistant to UV light and
weathering effects
Excellently adhesion to
protect electrical power distribution applications.
Wide shrinkage ratio is
proper to connect cable and connector.
Operating temperature
range
Operating temperature :
-55℃ ~ 110℃
Minimum shrink temperature
: 80℃
Minimum fully recovery
temperature : 120℃
|
|
|
|
Diameter in mm
|
Recovered
Thickness
|
Standard
Length
|
|
As supplied
|
Recovery
|
|
CATV 0400 (10/3.8)
|
10.00
|
3.80
|
2.0
|
1220
|
|
CATV 0750 (19/5.6)
|
19.00
|
5.60
|
2.0
|
1220
|
|
CATV 1100 (28/9)
|
28.00
|
9.00
|
2.0
|
1220
|
|
CATV 1300 (33/10)
|
33.00
|
10.00
|
2.0
|
1220
|
|
CATV 1500 (38/12)
|
38.10
|
12.00
|
2.0
|
1220
|
|
CATV 1700 (45/13)
|
45.00
|
13.00
|
2.0
|
1220
|
|
CATV 2050 (55/19)
|
55.00
|
19.00
|
2.0
|
1220
|
|
CATV 2750 (70/25)
|
70.00
|
25.00
|
2.0
|
1220
|
|
Heavy wall adhesive-lined polyolefin tubing
Applications
Provide both insulation and sealing for protected articles.
Suitable for joints and terminations, used to protect auto
wires, shipping cable, bundle wires and metal tubes against
water and moisture, especially in shipbuilding. |
 |
|
Characteristics
‧Thick wall insulation has abrasion-resisting, and
strain-relief.
‧Thick adhesive-lined provide an effective barrier against
fluids and moisture.
Operating temperature range
‧Operating temperature : -45℃ ~ 125℃
‧Minimum shrink temperature : 110℃
‧Minimum fully recovery temperature : 120℃
|
|
|
size
|
As supplied (mm)
|
After recovered (mm)
|
Standard
length
(M)
|
|
mm
|
Min. inside diameter
|
Max.
Inside
Diameter
|
Nom.
Wall
thickness
|
Nom.
Adhesive
thickness
|
|
15/6-M
|
15
|
6
|
1.5±0.3
|
0.75
|
1 or 1.2
|
|
20/8-M
|
20
|
8
|
1.5±0.3
|
0.75
|
1 or 1.2
|
|
33/8-M
|
33
|
8
|
2.5±0.3
|
0.75
|
1 or 1.2
|
|
35/12-M
|
35
|
12
|
2.5±0.3
|
0.75
|
1 or 1.2
|
|
40/14-M
|
40
|
14
|
3.0±0.3
|
1.25
|
1 or 1.2
|
|
50/20-M
|
50
|
20
|
3.05±0.3
|
1.35
|
1 or 1.2
|
|
60/20-M
|
60
|
20
|
3.05±0.3
|
1.35
|
1 or 1.2
|
|
70/20-M
|
70
|
20
|
3.05±0.3
|
1.35
|
1 or 1.2
|
|
90/28-M
|
90
|
28
|
3.5±0.3
|
1.35
|
1 or 1.2
|
|
100/28-M
|
100
|
28
|
3.5±0.3
|
1.35
|
1 or 1.2
|
|
120/38-M
|
120
|
38
|
4.0±0.20
|
1.35
|
1 or 1.2
|
|
140/45-M
|
140
|
45
|
4.0±0.20
|
1.35
|
1 or 1.2
|
|
160/53-M
|
160
|
53
|
4.0±0.20
|
1.5
|
1 or 1.2
|
|
180/53-M
|
180
|
53
|
4.0±0.20
|
1.5
|
1 or 1.2
|
|
320/100-M
|
320
|
100
|
4.5±0.20
|
1.5
|
1 or 1.2
|
|
380/160-M
|
380
|
160
|
4.5±0.20
|
1.5
|
1 or 1.2
|
|
450/160-M
|
450
|
160
|
4.5±0.20
|
1.5
|
1 or 1.2
|
|
Property
|
Test Method
|
Typical Data
|
|
Tensile Strength
|
ASTM D 2671
|
10.4 MPa (min.)
|
|
Tensile strength after aging 158℃, 168hrs.
|
ASTM D 2671
|
Remains 70 ％
|
|
Elongation at break
|
ASTM D 2671
|
200 ％(min.)
|
|
Elongation at break after aging 158℃, 168hrs.
|
ASTM D 2671
|
100 ％(min.)
|
|
Longitudinal shrinkage
|
UL 224
|
0 to -10％
|
|
Heat shock
|
250℃, 4hrs.
|
No cracking,
No dropping
|
|
Cold bend -30℃, 1hr.
|
ASTM D 2671
|
No cracking
|
|
Voltage withstand AC 2500V,60 seconds
|
ASTM D 2671
|
No breakdown
|
|
Volume resistance
|
ASTM D 876
|
1014Ω․cm(min.)
|
|
Flammability
|
SAE-AMS-DTL-23053/5
|
Self extinguish in 30 sec.
|
|
Copper corrosion 158℃, 168hrs.
|
UL 224
|
pass
|
|
Water absorption
|
ASTM D 570
|
＜0.5％
|
